Energy Saving PCD9080 Hammer Mill Crusher
Gold Stone Hammer Mill Hammer Rock Crusher 50 Tph
Technical Parameters
Model: PCD9080
Max Feed Size: 100mm
Production Capacity Of Clinker: 40-45t/h
Production Capacity Of Limestone: 45-50t/h
Average Discharge Size: 3mm
Motor Power: 45kw
Technical Parameters Of PCD Serial
| Model | Max feed
(mm) | Treat capacity(T/H) | Average
Discharge granularity
(mm) | Power
(kw) | Dimension(mm) |
| Clinker | Limestone |
| PC-D-8040 | <80 | 15~20 | 20~25 | 3 | 37 | 1395*1506*1390 |
| PC-D-8080 | <80 | 25~30 | 30~40 | 3 | 45 | 1395*1906*1390 |
| PC-D-9080 | <100 | 40~45 | 45~50 | 3 | 45 | 1754*1906*1659 |
| PC-D-9010 | <100 | 45~50 | 50~55 | 3 | 55 | 1754*2176*1659 |
| PC-D-1010 | <150 | 50~60 | 60~70 | 3~5 | 90 | 2138*2590*2021 |
| PC-D-1210 | <200 | 60~80 | 70~90 | 3~5 | 110 | 2524*2716*2325 |
| PC-D-1212 | <200 | 60~100 | 70~110 | 3~5 | 132 | 2524*2866*2325 |
| PC-D-1414 | <200 | 70~150 | 70~160 | 5~8 | 200 | 2550*3120*2670 |
| PC-D-1616 | <200 | 100~210 | 110~260 | 5~8 | 250 | 2922*3564*2900 |
| PC-D-1818 | <200 | 120~270 | 130~310 | 5~10 | 315 | 3121*3754*3150 |
Advantages
1, High efficiency and energy saving: the motor energy consumption is reduced by 30% under the same output;
2, Ultra-fine crushing: newly add granularity regulator to ensure that 85% output of discharge size less than or equal to 3mm
3, Super long lifespan: New type of quality vanadium molybdenum multi-element alloy hammerhead can be turned for use, thus the average service life is increased by 3-4 times.
Product Usage
Usage of PCD series ultrafine energy saving crusher: Widely used in chemical, building materials, metallurgy, mining, coal processing, sand making, and refractory industries, etc.
Product Tags:
|
|

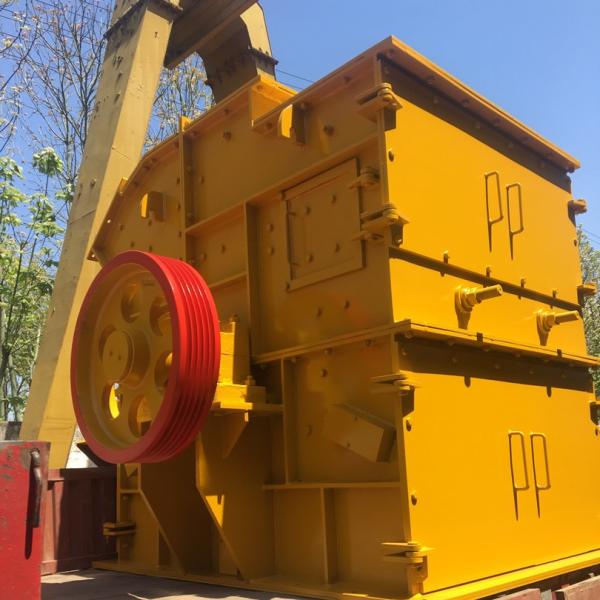

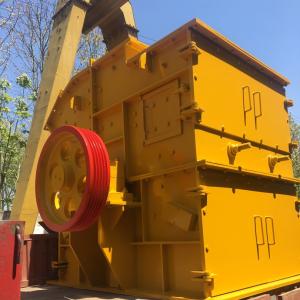

45kw Hammer Crusher Machine PCD9080 Limestone Hammer Mill Crusher Images
|
